• ElekTek Premium Pendant Light Kit DIY 100mm Convex Ceiling Rose, Chain, Twisted Flex and Lamp Holder E27 Plain Hook
SKU: SIN_210304
EAN: 5056121210304

ElekTek Premium Pendant Light Kit DIY 100mm Convex Ceiling Rose, Chain, Twisted Flex and Lamp Holder E27 Plain Hook

£33.98
Availability: In Stock
Colour

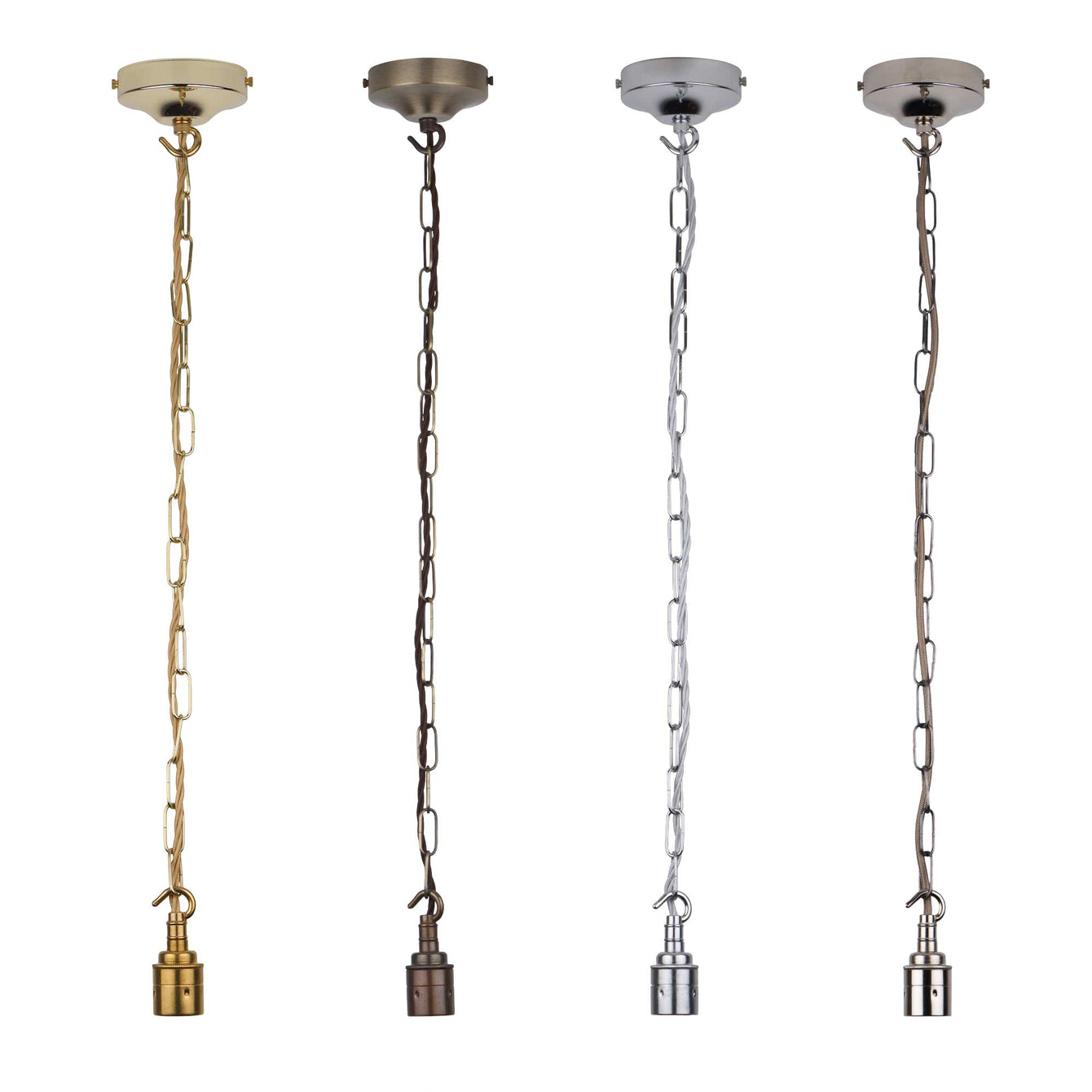

Brass Antique Brass Chrome Nickel (Round Flex)
Description
Description

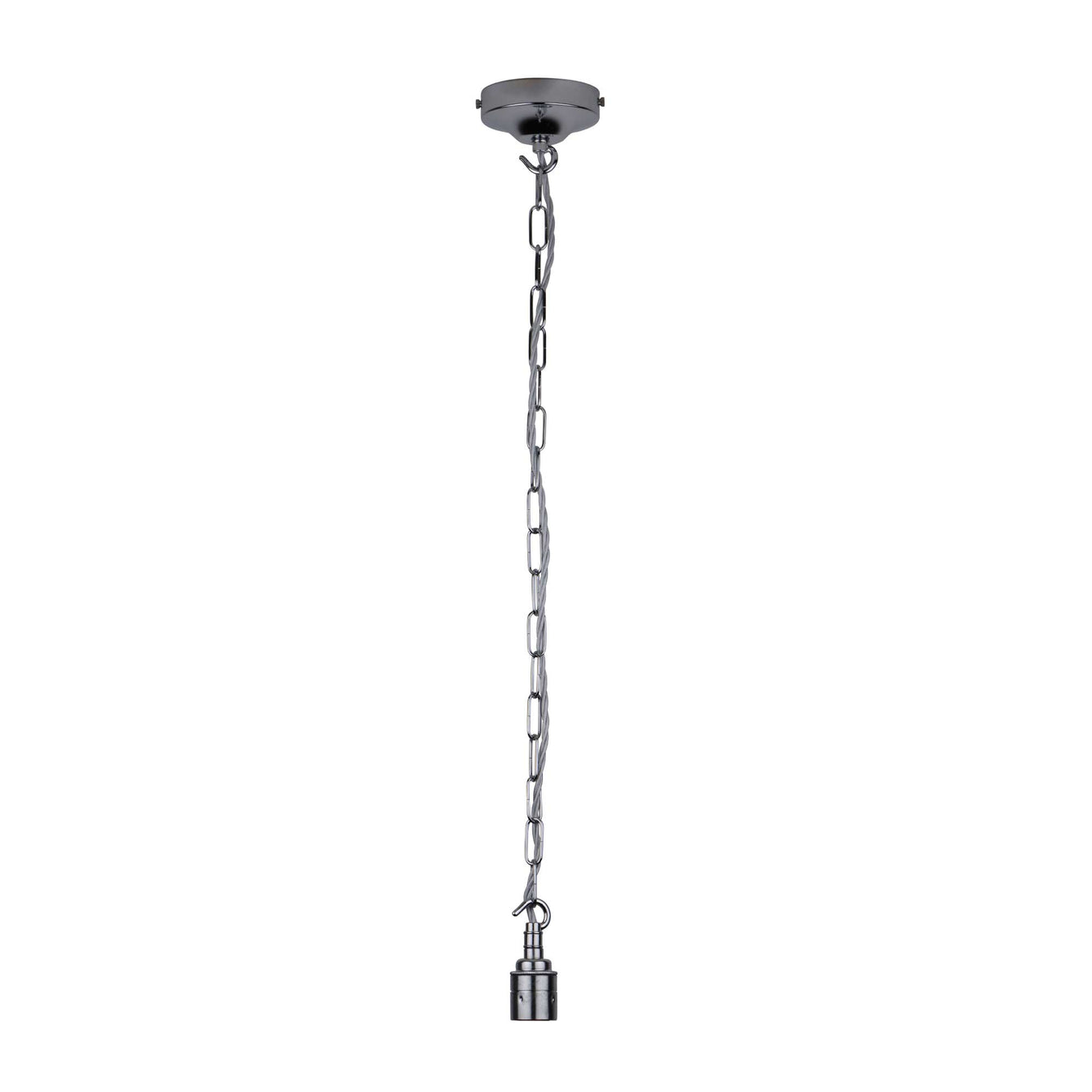

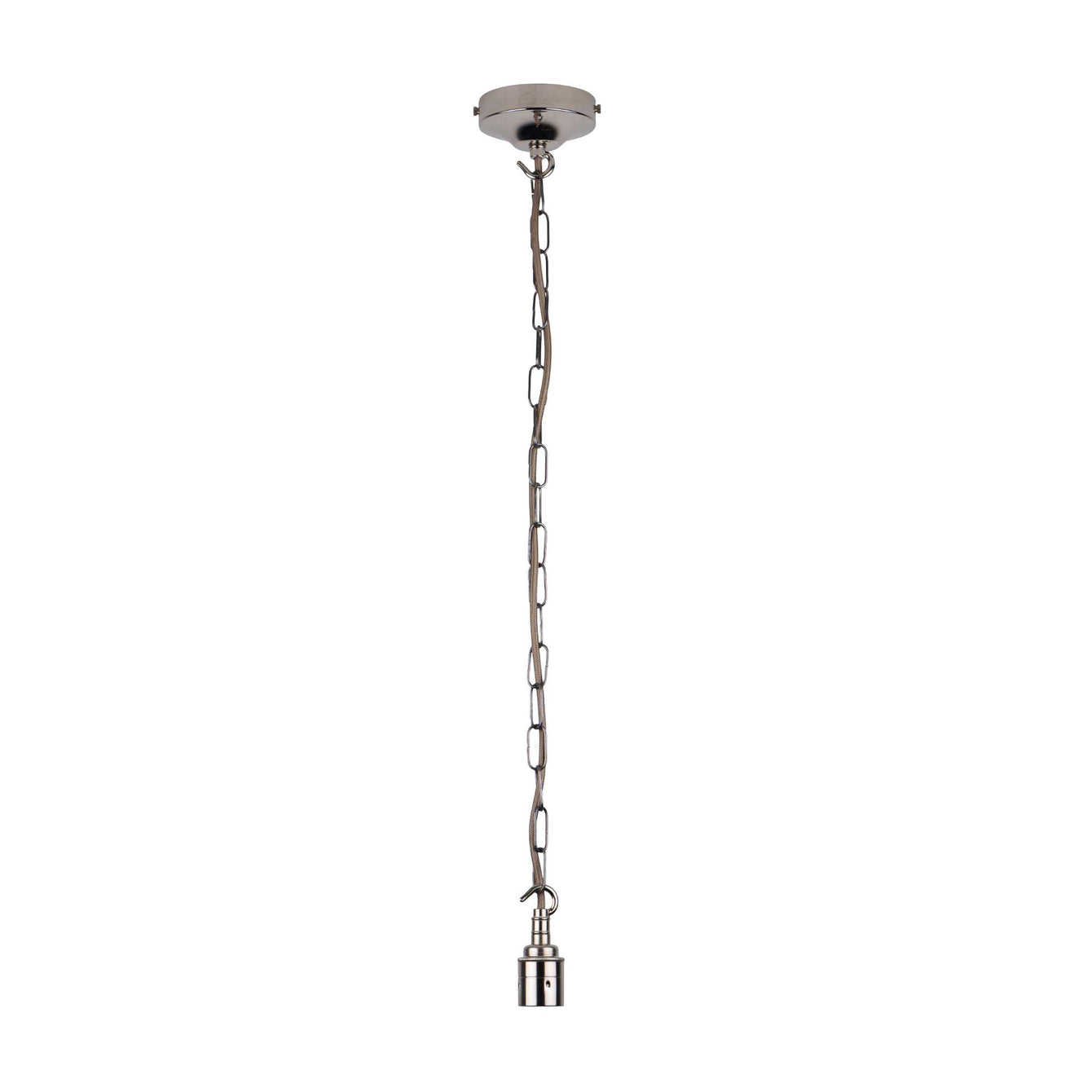

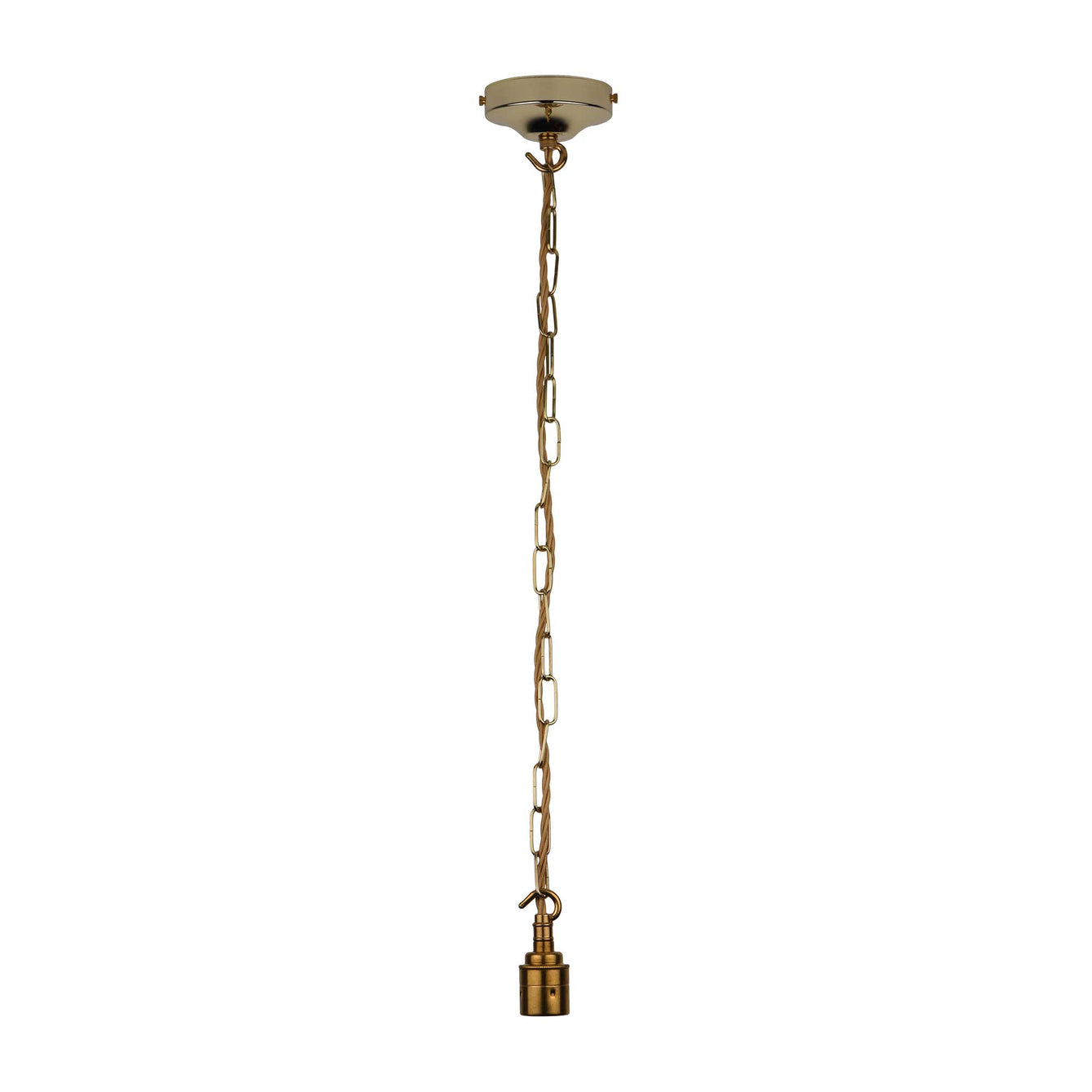

The ElekTek DIY pendant ceiling light kit contains everything you need to assemble a premium quality ceiling light with a pendant drop of 70cm.

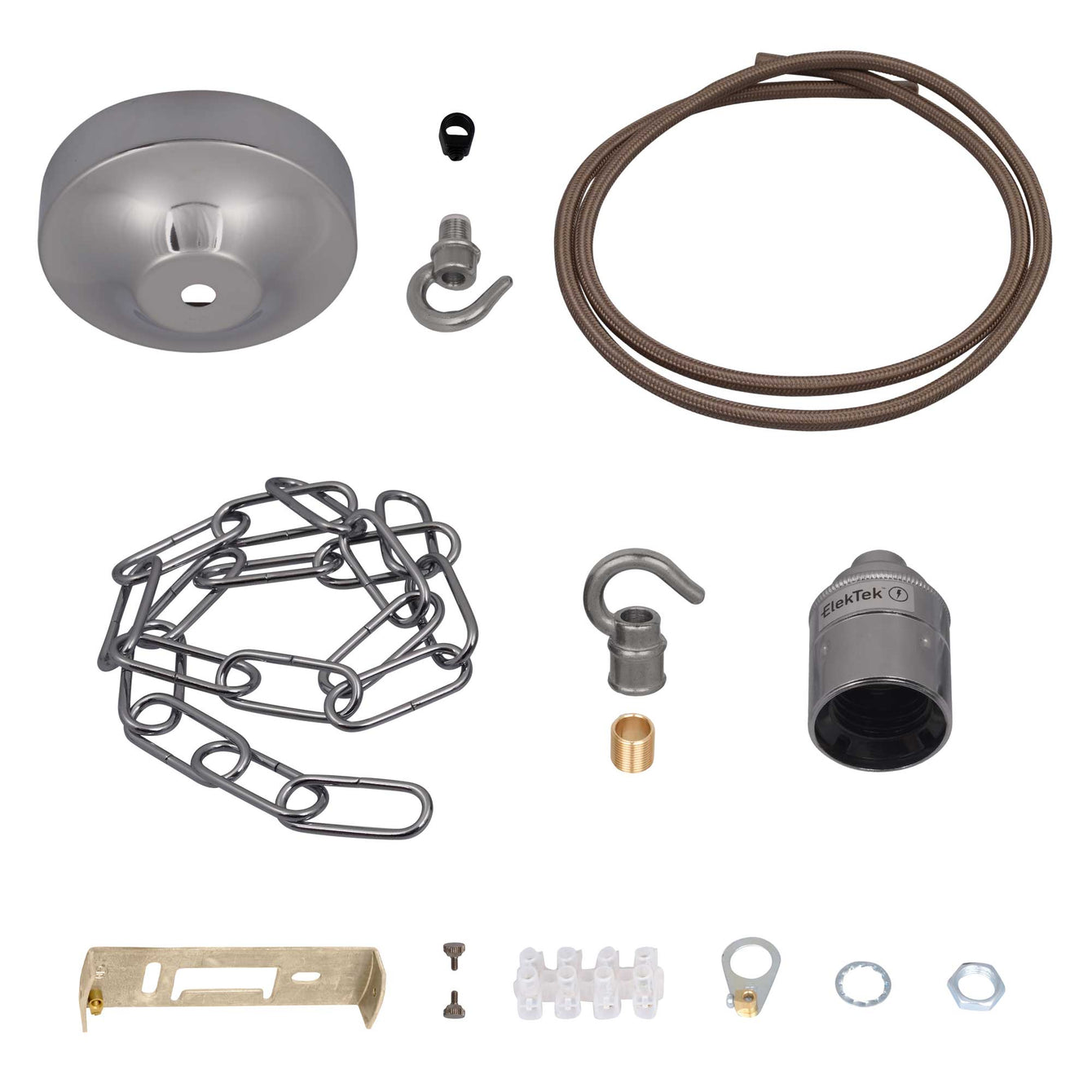

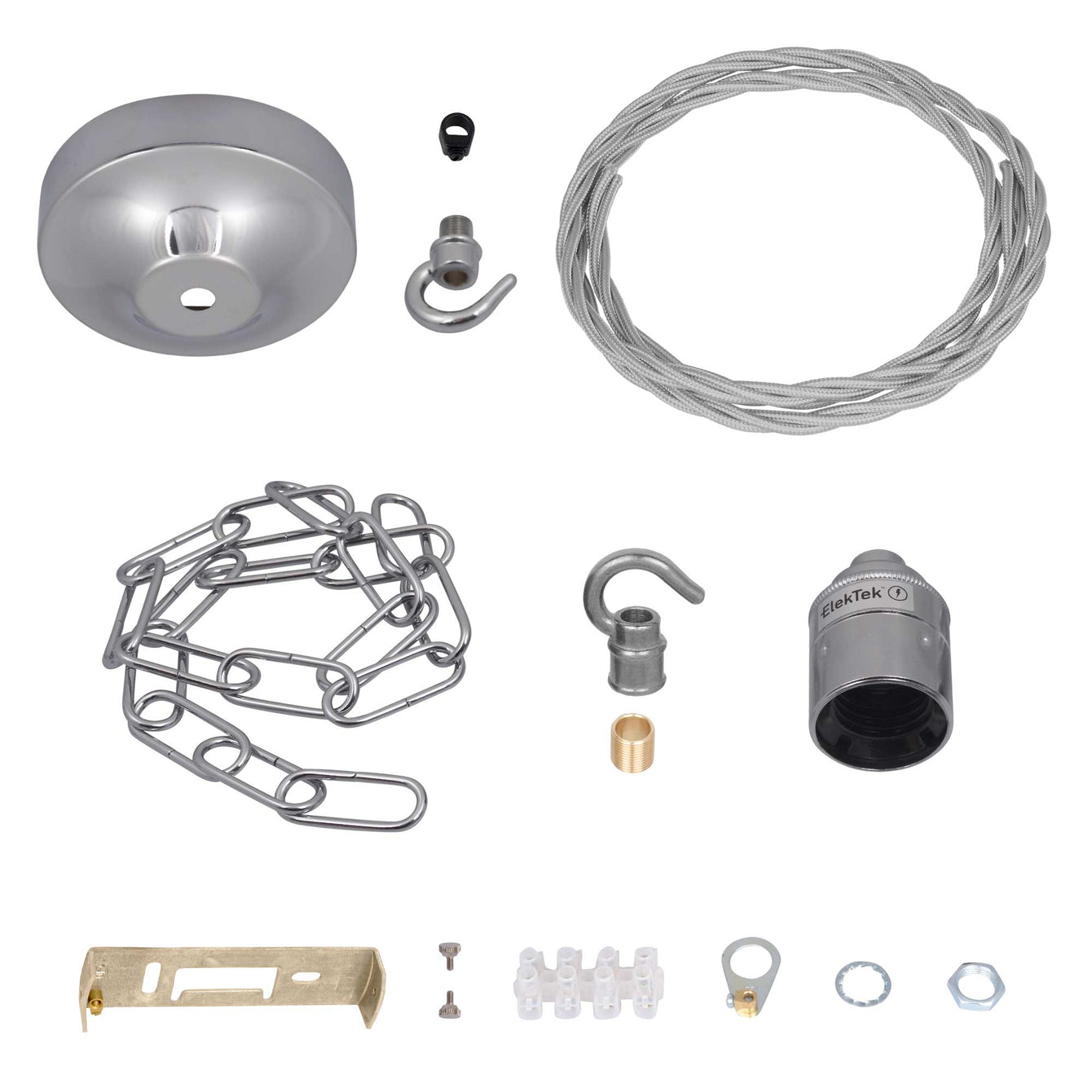

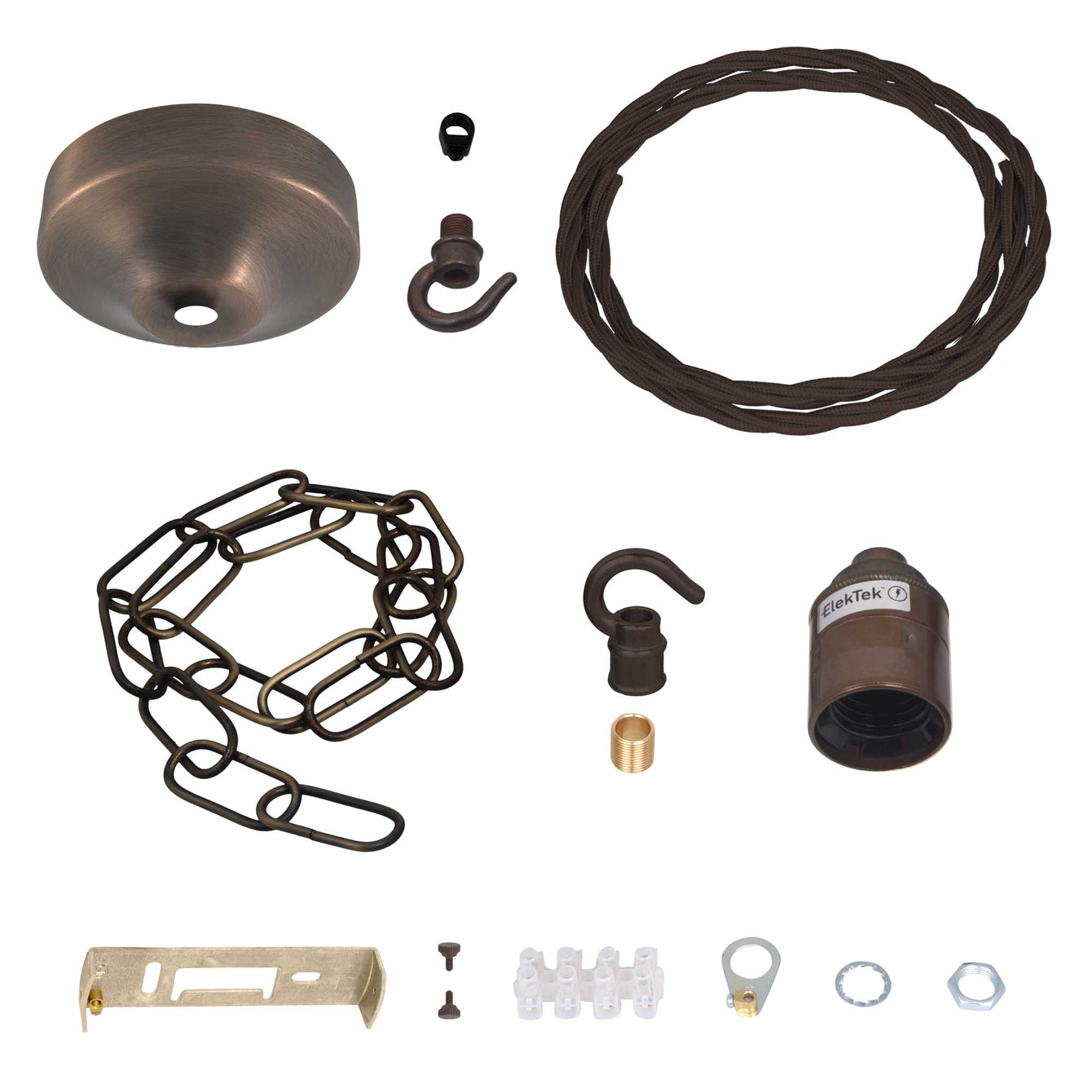

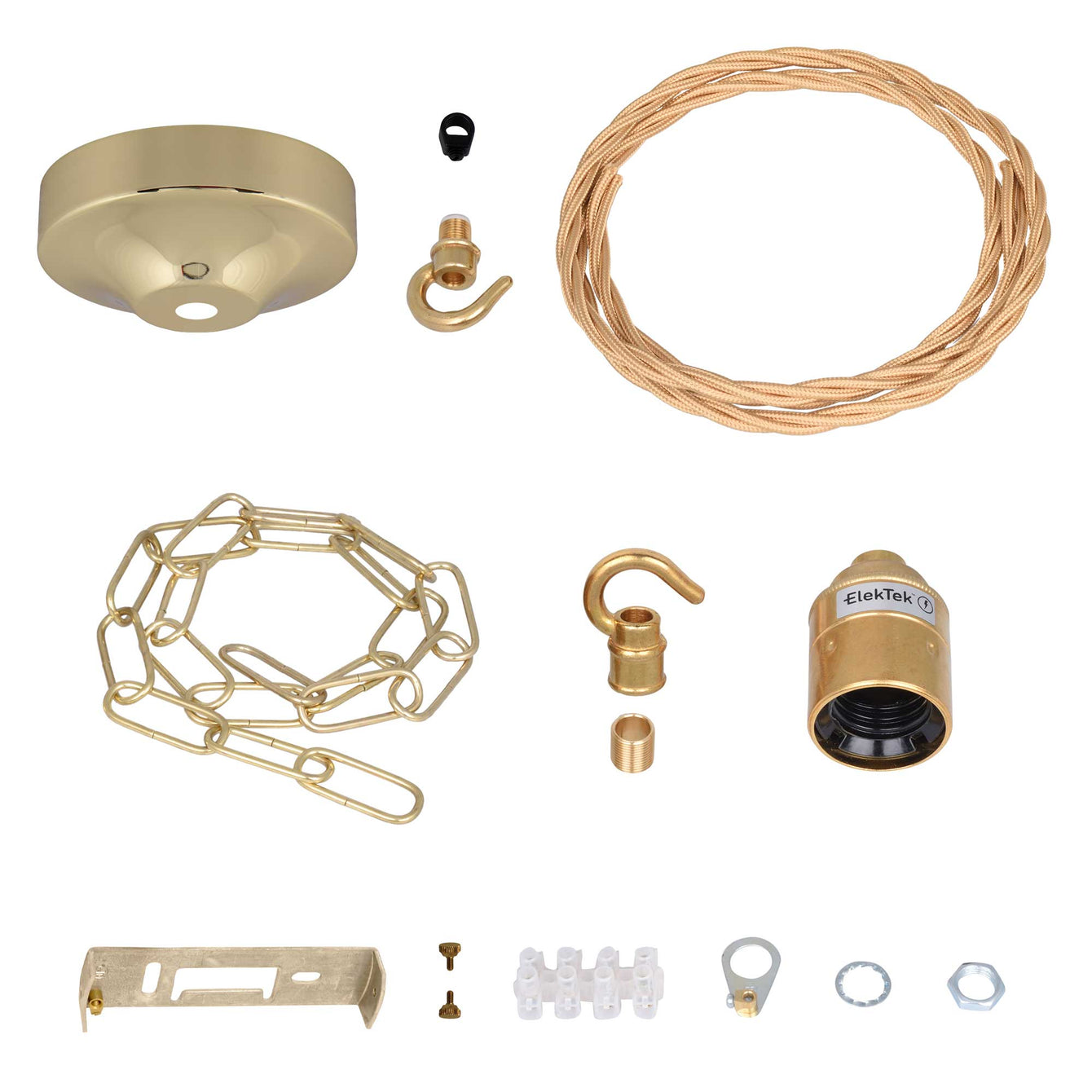

EACH LAMP KIT COMPRISES:

  • 100mm convex ceiling rose with hook
  • 800mm (80cm) Twisted braided flex
  • E27 plain lamp holder with hook

ElekTek 100mm Diameter Convex Ceiling Rose with Hook

  • 100mm diameter, 40mm Depth, 25mm Hook
  • 5kg (12lb) capacity
  • Fittings kit included - see picture
  • Has an easy to install steel fitting strap that fits behind existing ceiling plate and wiring installation (remove break-away steel bar - see picture) using existing fixing screws and holes.
  • Made in the UK

This is a ceiling rose that can be fitted over most existing plastic ceiling plates without disturbing existing wiring.

When using existing fixing screws, they must be secured into ceiling joist.

The rose is supplied with a complete fitting instructions and fittings kit, including a hook for a chain suspension light fitting or chandelier, a flex clamp for a pendant light fitting, lock nut, grip washer, earth ring and flex tube.

Open Link Chain - For Chandeliers, Lighting & Decorative Use

  • 38mm x 15mm link size
  • 2.8mm bar
  • Links not welded so can be extended or shortened
  • 10kg load

3 Core Twisted Braided Lighting Flex

  • General purpose decorative fabric covered lighting flex
  • Conductor section 0.75mm2
  • Length supplied 0.8m (80cm)

NB: The Nickel matched flex is round, not twisted.

E27 Plain Lamp Holder Hook

Ideal for creating traditional suspended lamp/bulb arrangements in conjunction with a range of ElekTek Ceiling Roses, Chain, Cable and Flex.

  • Premium 1/2" Entry E27 Earthed Lamp Holder with Plain Skirt
  • Lamp holder Edison Screw ES earthed
  • Ideal for vintage look lamps and bulbs
  • Solid Brass
  • Maximum diameter approx 39mm
  • Height approx 64mm
  • Plain Skirt
  • Aperture for Cable/Flex approx 6.5mm
  • Internal Earth terminal - Metal fittings must be earthed
  • Approx. 25m Hook Drop

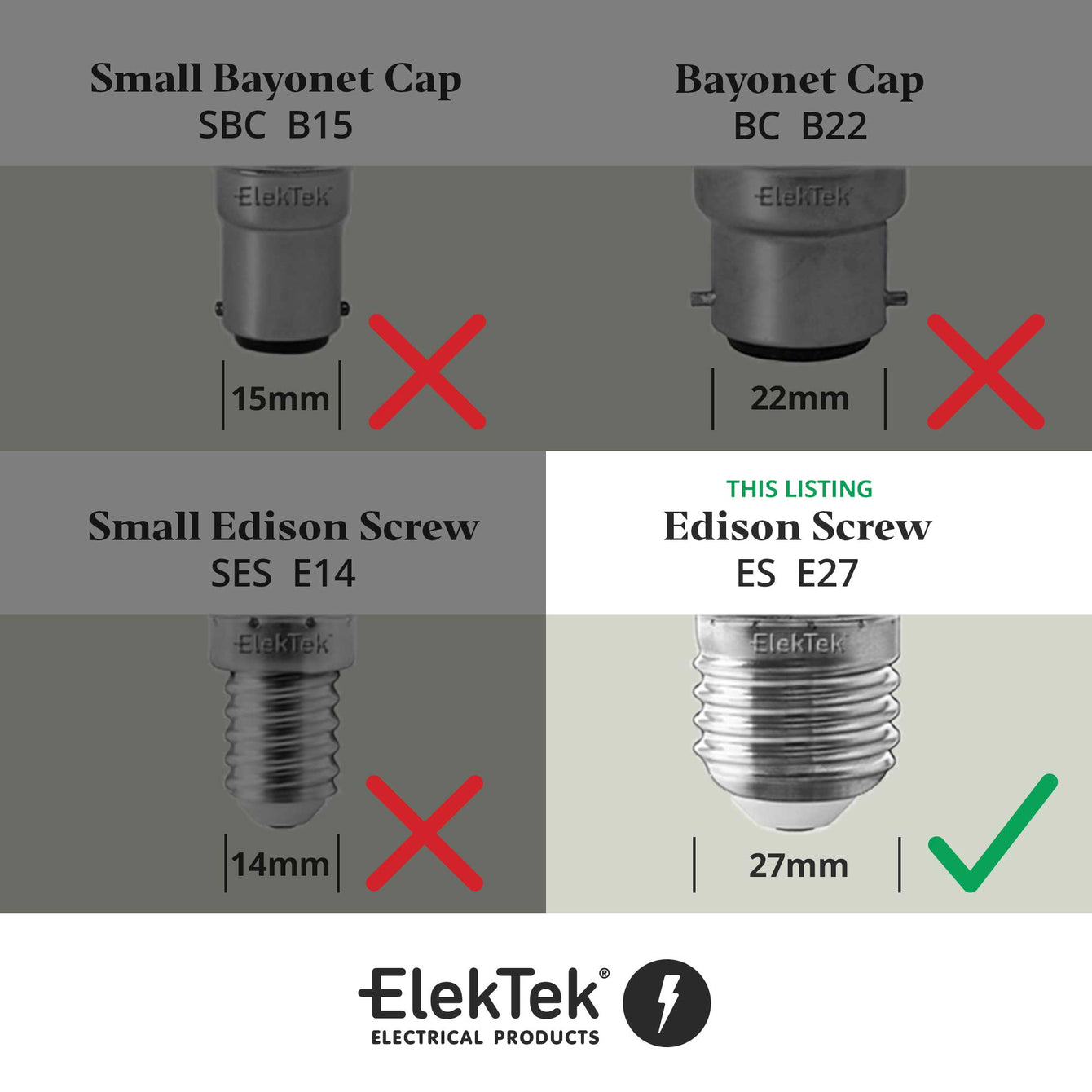

  • The most common size Edison Screw fitting is this solid brass Edison Screw ES E27 lamp holder
  • Made in the UK

Locking body with an M10 10mm threaded entry. Edison Screw ES E27 cap brass earthed lamp holder, with internal locking screw and ceramic interior with brass contacts

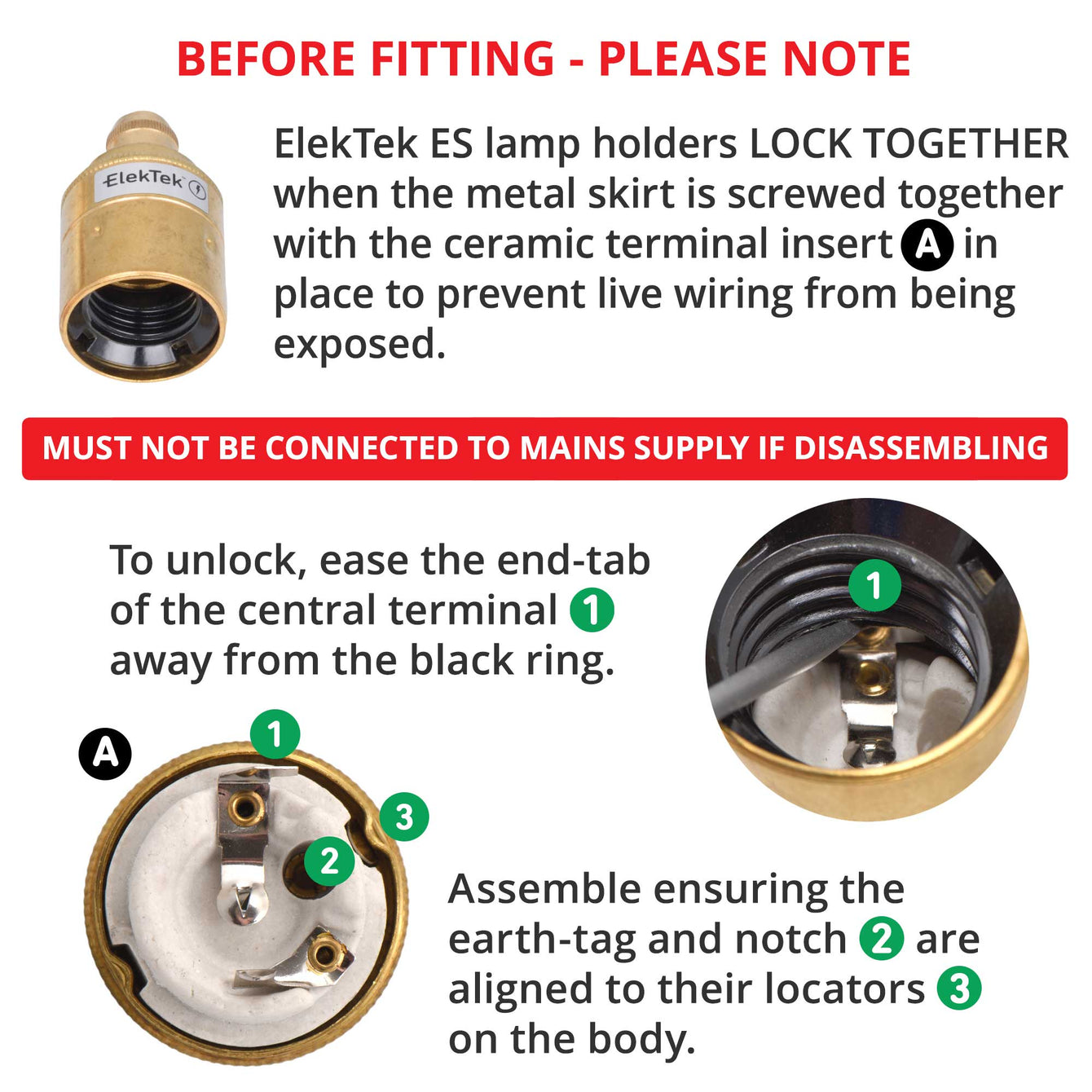

Has an internal safety locking screw in the cap to prevent the loosening of the lamp holder after it has been installed. Unlike Cheaper Alternatives

This product is suitable for lighting circuits only. T2 temperature rating (220°C).

All electrical work should be undertaken by persons competent in the wiring and installation of these items. If in any doubt, please consult a qualified electrician.

All metal electrical fittings must be earthed; all ElekTek products have earth terminals where required.
